Toyota GR Yaris 2020 Standalone Engine Management System

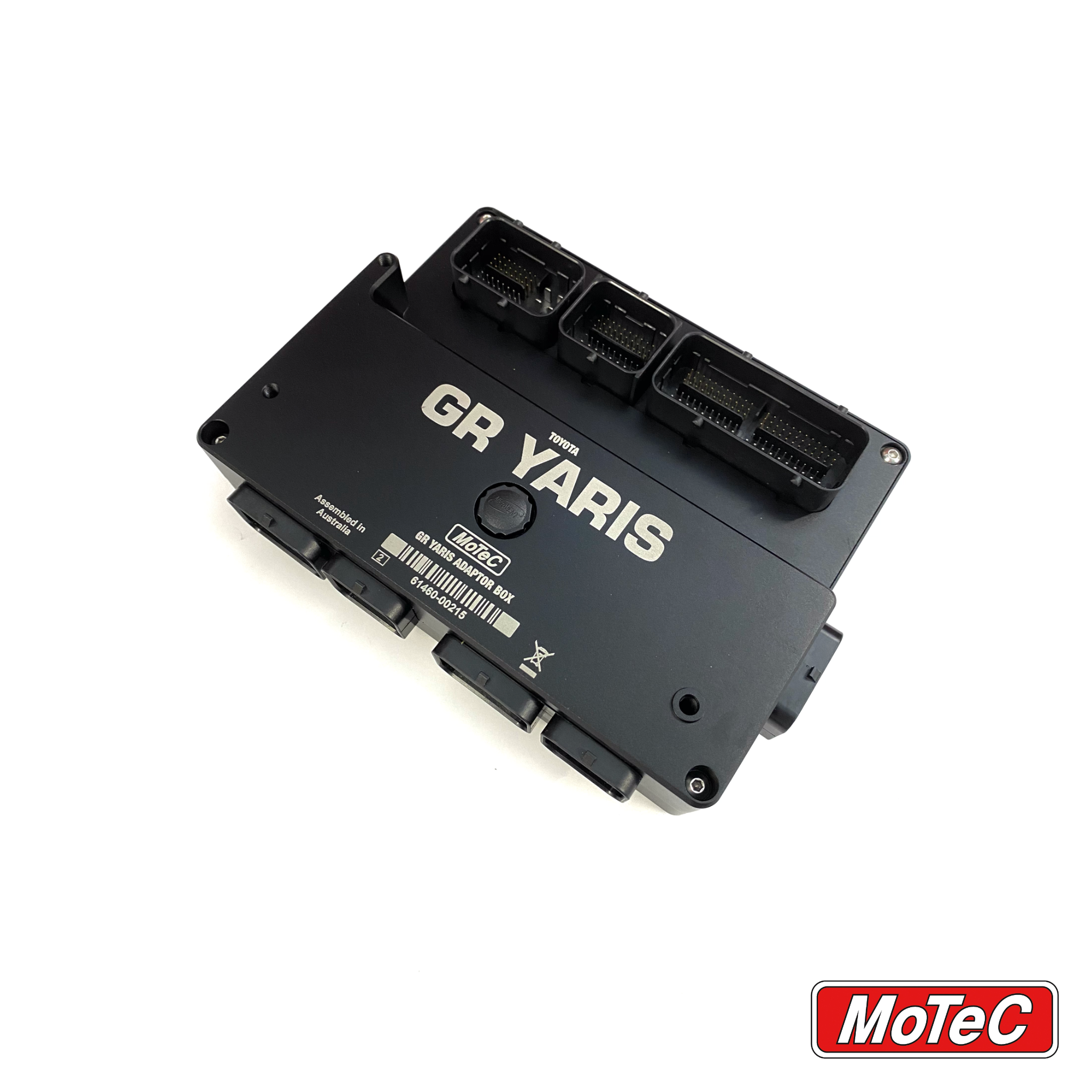

This M142 Plug-In kit provides a complete replacement for the OE ECU for the Toyota Yaris GR 20'.
Using the existing wiring, the original fuel system and sensors, it delivers conveniant installation with fully programmable control.

Along with fuel, ignition, throttle and camshaft control, this kit also supports OE ECU features including:

Selectable Drive Mode - Normal / Sport / Track
Head-Up Display
Direct injection with high pressure fuel pump and secondary port injection control (saturated high-ohm injectors only).
Cruise control
All OE dash functionality including warnings


Kit Includes:
M142 ECU Marine
M142 Toyota Yaris GR 2020 Adaptor Kit
M142 Toyota Yaris GR 2020 Adaptor Box
M1 Adaptor 250mm 26W Key 1 Stub Loom
M1 Adaptor 250mm 26W Key 3 Stub Loom
M1 Adaptor 250mm 34W Key 1 Stub Loom
M1 Adaptor 250mm 34W Key 2 Stub Loom
BOSCH LSU 4.9 Wideband Lambda Sensor
M1 Adaptor LTC Loom
LTC - LSU Lambda To Can
Toyota Yaris GR 2020 Gateway Loom
2 Pin DTM Connector Kit Male
2 Pin DTM Connector Kit Female
M1 License - Toyota Yaris GR 2020
Installation instructions


System Requirements
Operating systems: Windows XP, Vista or 7, 32 or 64 bit
Minimum screen resolution: 1366 x 768
Recommended screen resolution: 1600 x 1200 or greater
Communications port: Ethernet Port
Communications protocol: IPV6

The M1 application allows many customisable screen layouts to make your engine callibration easier and faster. To get the most out of Tune, you should use the highest screen resolution possible. Using a low screen resolution will reduce your layout options.
